Customized Pneumatic press

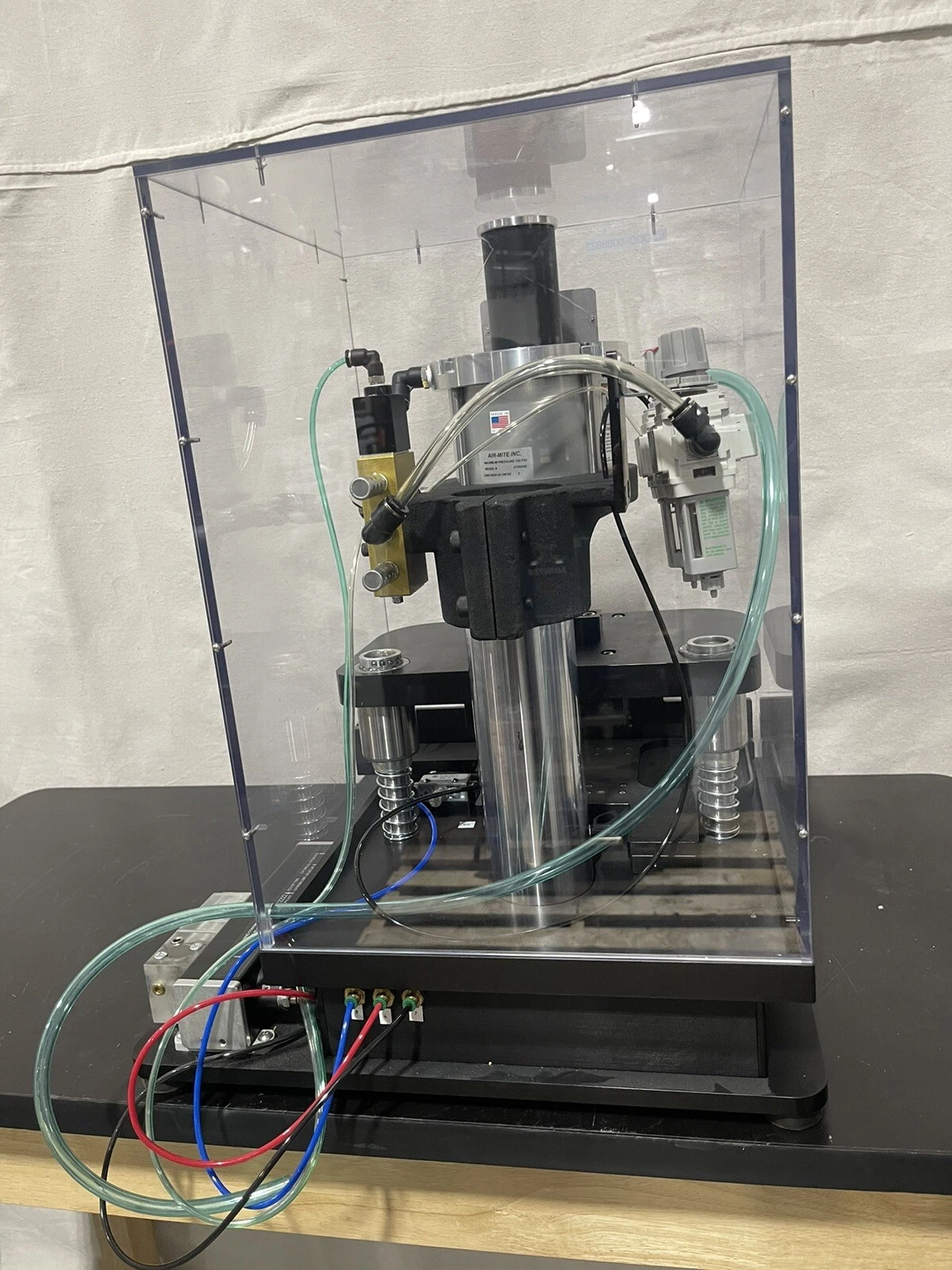

added a die set that attaches the shaft of the cylinder and also a clear cage around the unit. This press is designed as where it can clamp

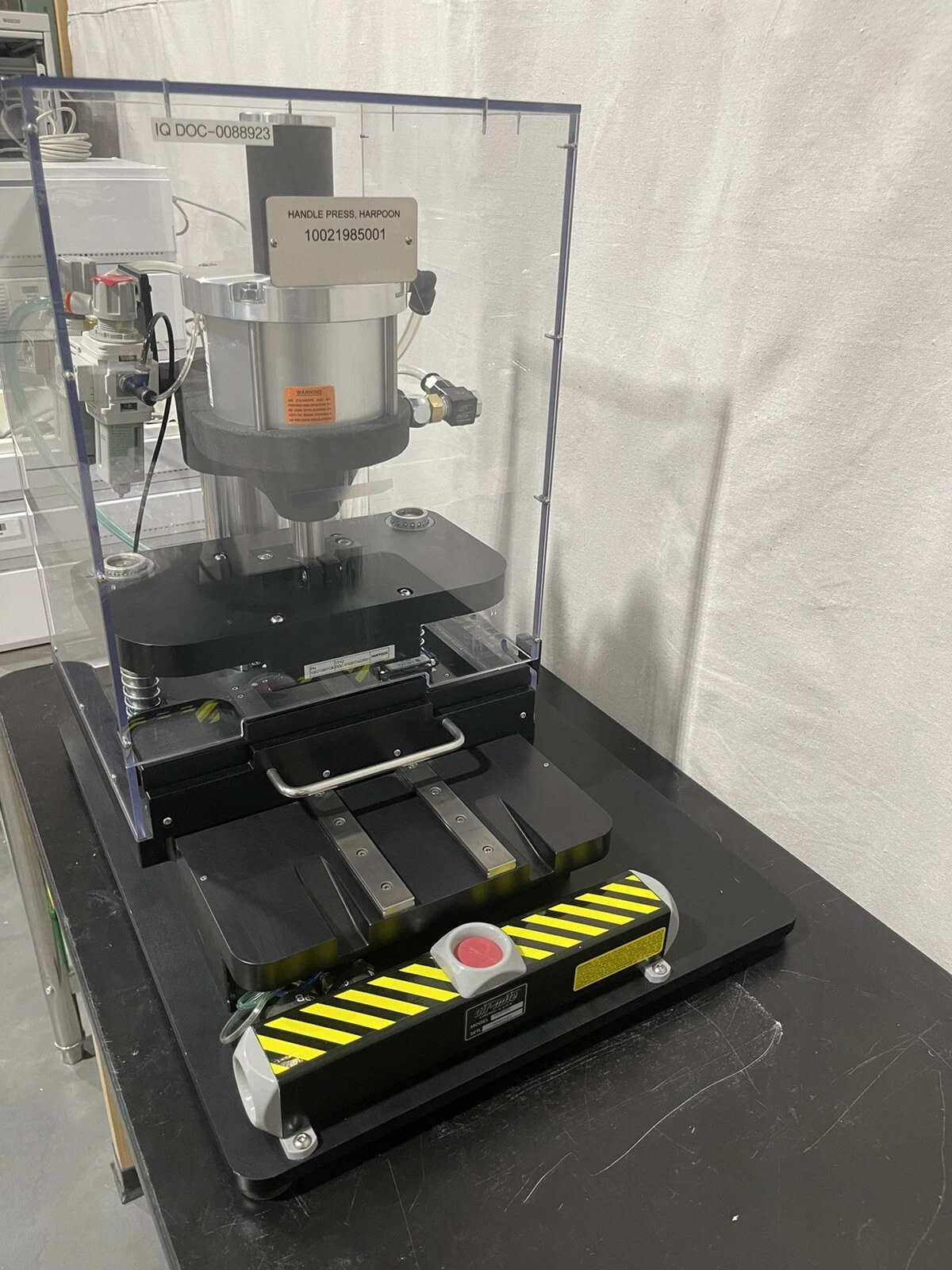

and hold a part for a set duration. The operator would push both buttons on the end of the controller at the same time and the rod would extend. Once extended it will stall there until the timer

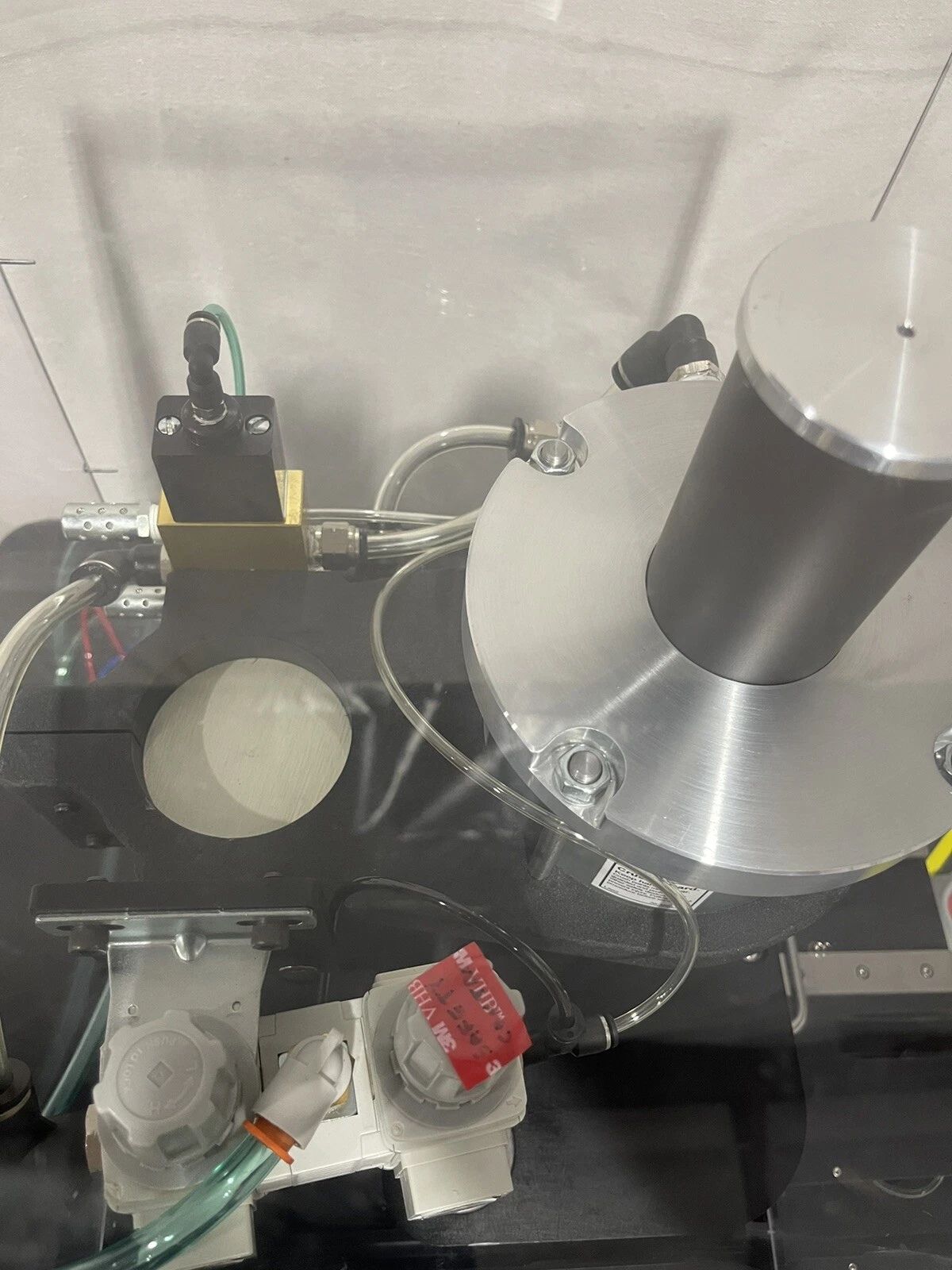

runs out or if you hit the red button to retract. The timer It should be part number SC2222 which is the black square tubing with a clear block attached

to the back. Inside that block you will see a round piston that is adjustable. By changing the depth of that piston will change the length of time on the extension. This is the description and part number

of the press below:

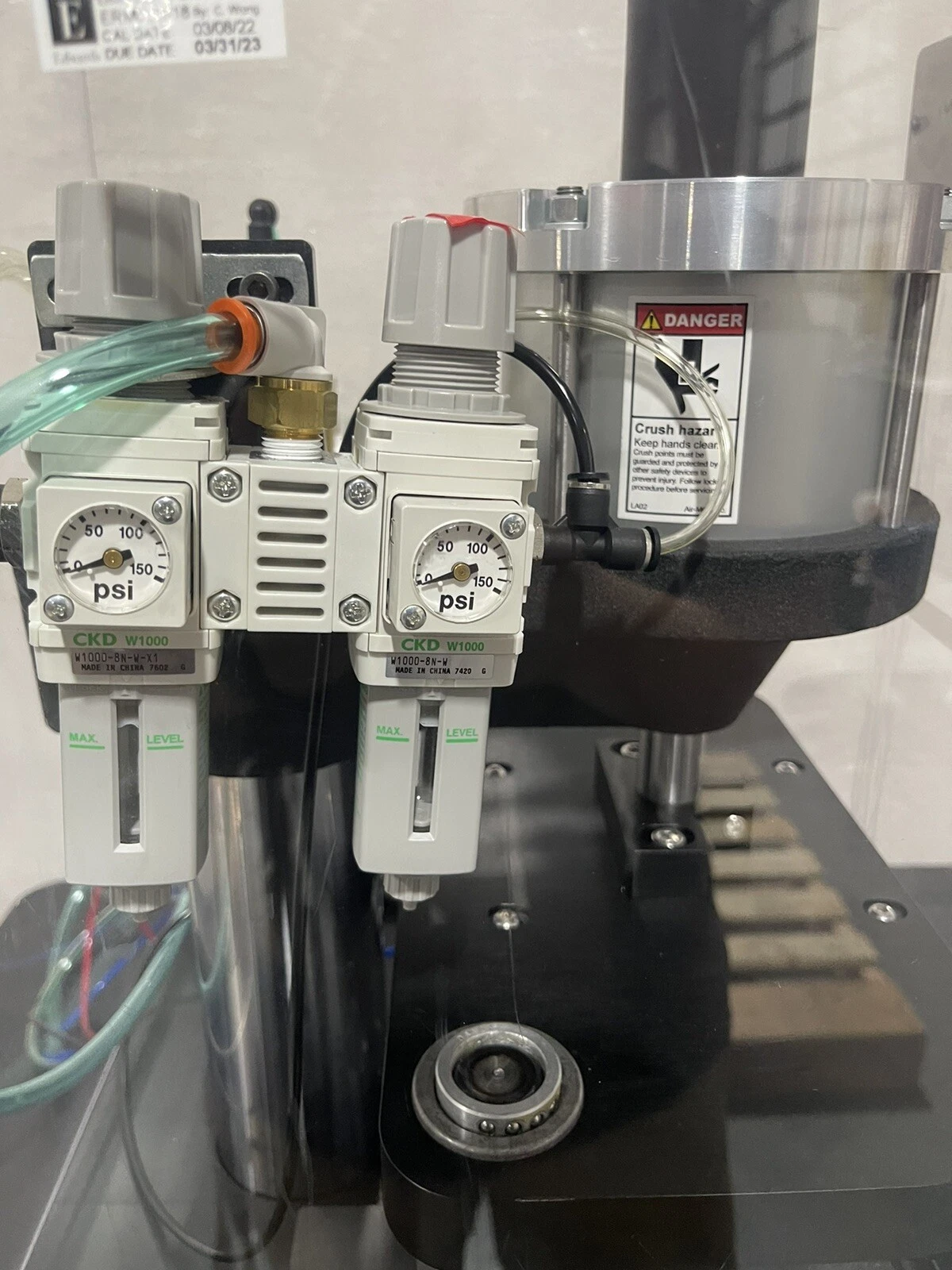

CMS19DR-2C-36FSE: Cast Mount 1900LB.Double Rod, Double Acting Press 5" Bore x 2" Stroke Cylinder, Chrome Plated 3" Column with Painted Epoxy Ends. Clamp And Hold Safety Control Package With Air Timer: SC3400 Two Hand Safety Control With EPB, SC2222 Clamp Circuit With Timer, End Of Stroke Sensor, (2)FR1000 Mini Filter Regulators- 5 Micron, Distributor Block, Pilot Control Valve, Roto-Flo Speed Control In Extend. Misc. Fittings & Tubing
