Applied Biosystems 7500 Fast Real-Time PCR System ABI 4407205

Dimensions: Height: 24.5cm (9.6 in.), Width: 23.7 cm (9.3 in.), Depth: 48.5 cm (19.1 in.)

Display: 6.5 in. VGA 32k color with touch screen

For Use With (Equipment): Veriti Thermal Cycler

Peak Block Ramp Rate: 3.9°C⁄sec

Product Line: Veriti™

Programs: Auto re-start (after power outages), Program overwrite protection

Reaction Speed: Fast, Standard Reaction Volume Range: 10-100 µl

Remarks: VeriFlex™ Blocks: 25 °C (5 °C Zone-to-Zone), Standard 0.2 ml format and sample block enabled to run fast chemistry

Sample Ramp Rate: ± 3.35 °C⁄sec

Temperature Range (Metric): 4.0-99.9 °C

Tm Calculator: Menu driven through touch screen

Weight: 11.4 kg (25 lb)

Capacity: 96 x 0.2 ml tubes, 1 x 96-well plate

Display Type: 6.5 in. VGA 32K Color Touch Screen

Interface: USB

Width (Metric): 23.7 cm

Depth (Metric): 48.5 cm

Height (Metric): 24.5 cm Width (English): 9.3 in.

Depth (English): 19.1 in.

Height (English): 9.6 in.

Weight (Metric): 11.4 kg

Weight (English): 25 lb.

Voltage: 100/240 V

Block Configurations: 96-Well, 0.2 mL, 6-zone VeriFlex Max.

Ramp Rate: 3.9°C/Sec (Block), 3.35°C/Sec (Sample)

Thermal Uniformity: <0.5°C (20 Sec After Reaching 95°C)

Thermal Accuracy: ±0.0.25°C (35°C to 99.9°C)

Thermal Range: 0°C to 100°C

For Use With (Application): PCR

Product Type: Thermal Cycler

Format: 0.2 ml tubes, 96-well plate

Temperature Accuracy: ±0.25°C (35°C to 99.9°C)

Temperature Uniformity: <0.5 °C (20 sec after reaching 95 °C)

High-throughput Compatibility: High-throughput Compatible

Memory: USB and On-board

 The Applied Biosystems® Veriti® 96-Well Thermal Cycler delivers the proven reliability of Applied Biosystems® instruments. With the added control of VeriFlex™ technology, you have six independent temperature blocks that provide precise control over your PCR optimization. Additionally, the color touch screen simplifies setup and use of the Veriti® 96-Well Fast Thermal Cycler. Optional setups for fast or standard PCR methods provide with flexibility to shorten your PCR cycling times. The Veriti® 96-Well Thermal Cycler is equipped with a standard 0.2 mL block configuration.

Key Highlights:

• Innovative VeriFlex™ Blocks allow for precise PCR optimization and enable you to run up to 6 independent assays

• Standard 0.2 mL block format is compatible with many downstream applications • Standard and fast enabled cycling to address your current and future PCR needs

• Easy-to-use graphical interface (6.5 inch VGA Touch Screen) • Convenient protocol transfer from one Veriti® Thermal Cycler to another using USB

• Reduced PCR cycling time when using faster ramp rates

• Optional VeritiLink™ Remote Management Software provides you with peace of mind, allowing you to remotely manage more than 50 cyclers from your PC or internet-compatible phone VeriFlex™ Blocks:

Enhanced PCR Functionality The Veriti® 96-Well Thermal Cycler features innovative VeriFlex™ Blocks for enhanced PCR functionality. Six separate peltier blocks provide maximal versatility and flexibility and offer two key benefits:

1) PCR Optimization: each block can be set with a specific temperature which is ideal for precise control over PCR optimization

2) Run more experiments: the six peltier blocks can also be used to run up to six different annealing temperatures in the same run.

With this enhanced functionality, the Veriti™ 96-Well Thermal Cycler with VeriFlex blocks is the ideal thermal cycler for any lab. Control at your fingertips The powerful, yet simple to operate user interface on the Veriti system is driven by the 6.5 inch (16.51 cm) VGA color touch screen. The large screen allows for easy viewing of your temperature profiles. Additionally, the large navigation buttons put programming of the Veriti Thermal Cycler at your finger tips. Setup and navigation of the Veriti Thermal Cycler does not require the use of a stylus or mouse.

Fast setup, fast results The Veriti system has two different options for method navigation. For quick setup, you may select one of the pre-programmed methods to run. If you prefer to program your own methods, simply touch the step you would like to setup and then use the keypad to enter thermal cycling steps. After completing a setup, you have the choice of saving the method to the instrument or to a USB memory stick. Control your time: Go fast when you want With the Veriti™ Thermal Cycler you get two thermal cyclers in one, a standard thermal cycler with its better than gradient feature, and a fast enabled thermal cycler. So whether you have a current need to run fast PCR and shorten your PCR cycling times, or a possible future application need for fast PCR, the Veriti Thermal Cycler provides you with the flexibility to go fast when you want.

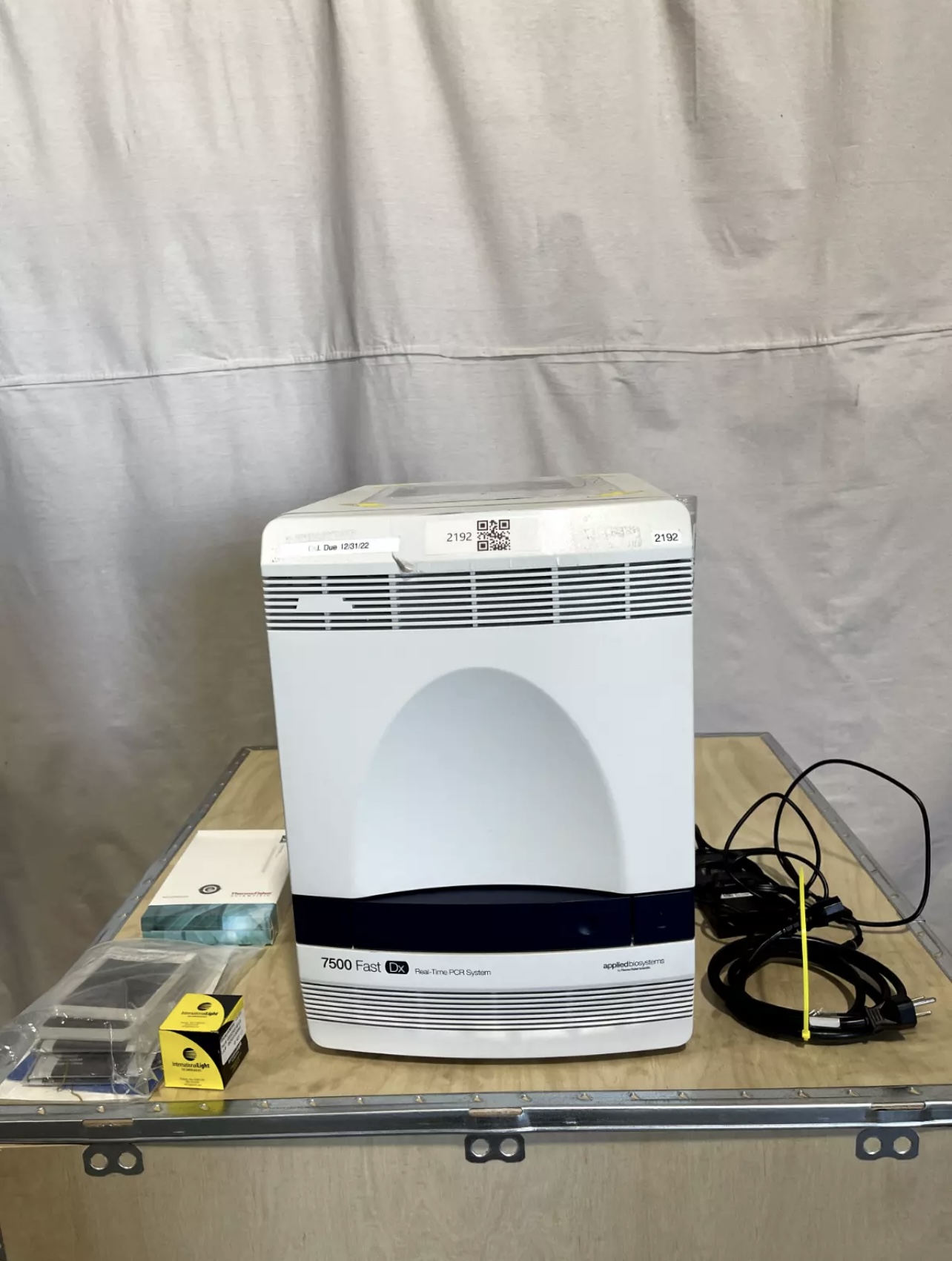

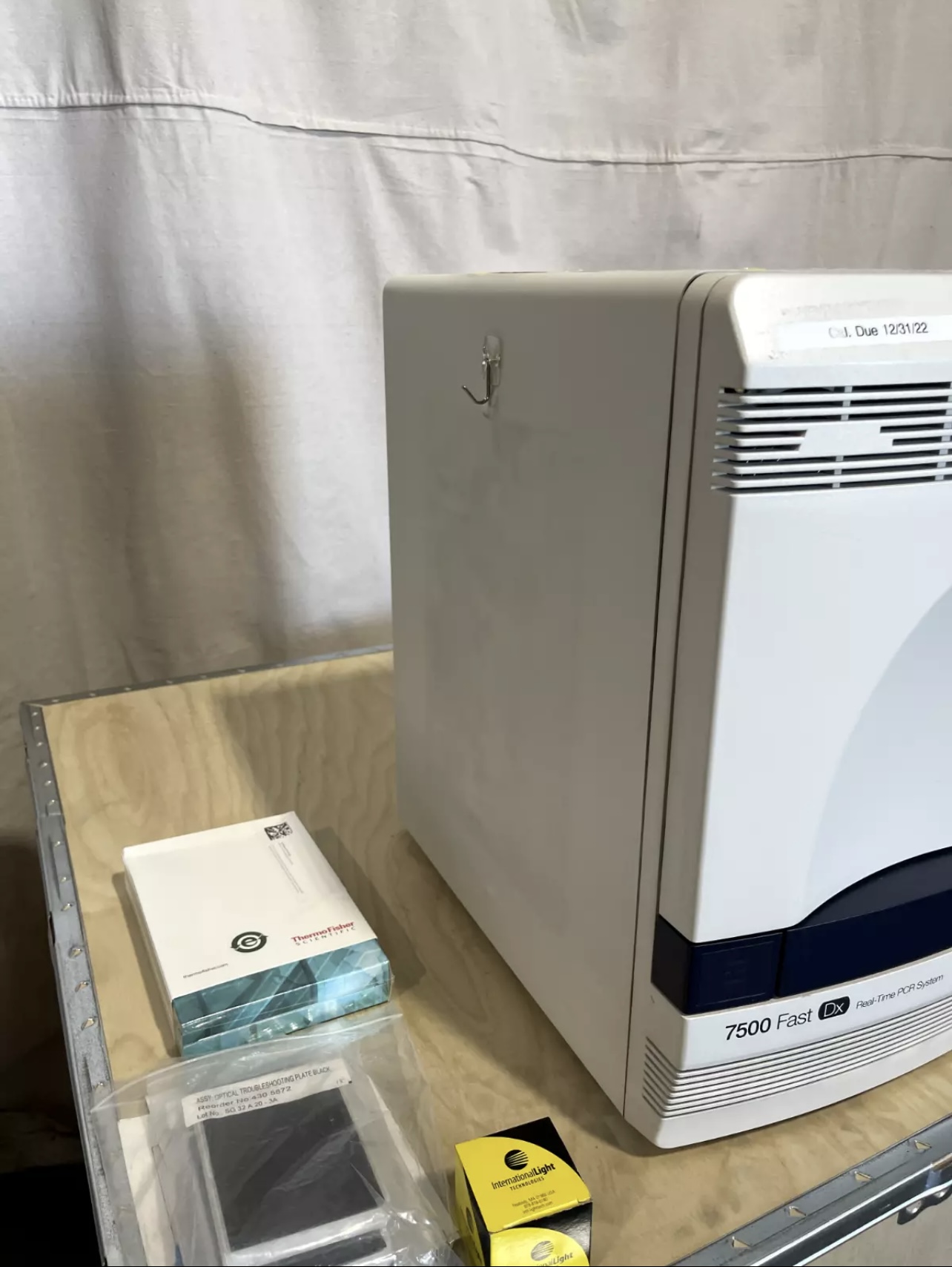

The Applied Biosystems 7500 Fast Real-Time PCR System (Model ABI 4407205) is an advanced, high-performance PCR instrument designed for fast, accurate, and reliable real-time PCR results. Tailored for demanding research and diagnostic applications, this system offers a unique combination of robust sensitivity, broad dynamic range, and rapid thermal cycling, ideal for molecular biology, genetics, and clinical research. With its streamlined workflow and intuitive software, the 7500 Fast System is optimized to help researchers accelerate their projects with confidence.

Key Features:

• Fast PCR Mode: The 7500 Fast Real-Time PCR System provides rapid thermal cycling for reduced run times, allowing you to complete a PCR run in as little as 30 minutes without sacrificing accuracy or sensitivity.

• High Sensitivity and Dynamic Range: This system offers an impressive sensitivity that enables detection of low-abundance targets, ensuring reliable quantification across a wide dynamic range.

• Multiplexing Capability: Capable of detecting up to five different targets in a single reaction, the 7500 Fast System allows for multiplex PCR, reducing sample consumption and streamlining workflows.

• Intuitive Software: The Applied Biosystems software suite provides user-friendly controls, with options for absolute quantification, relative quantification, and SNP genotyping, making setup and analysis simple and accessible.

• Enhanced Optical System: With a high-intensity tungsten-halogen lamp and sophisticated optical filters, the system achieves accurate detection across a wide range of fluorophores, providing flexibility in assay design.

• Uniform Temperature Control: The advanced thermal block technology ensures uniform temperature distribution across all wells, minimizing the risk of variability and maximizing reproducibility.

• Compact Design: This benchtop system is designed to conserve lab space while still offering the performance and functionality expected of larger PCR systems.

Applications:

• Gene Expression Analysis: Quantify gene expression levels quickly and accurately, ideal for basic and translational research.

• Pathogen Detection: Ideal for diagnostics, this system offers reliable and sensitive pathogen detection for clinical and environmental monitoring.

• Genotyping and Mutation Detection: Useful for SNP genotyping and mutation analysis in genetic and population studies.

• DNA and RNA Quantification: For applications requiring precise quantification of DNA or RNA from a variety of sample types.

• Pharmaceutical and Biotech Research: Streamlines R&D workflows in pharmacogenomics and biomarker discovery, supporting precision medicine initiatives.

Why Choose the Applied Biosystems 7500 Fast Real-Time PCR System ABI 4407205?

The Applied Biosystems 7500 Fast Real-Time PCR System is a reliable choice for laboratories requiring high sensitivity, multiplexing flexibility, and fast processing times. From pathogen detection to gene expression studies, this system meets the needs of researchers looking for consistent, high-quality results under demanding conditions. The 7500 Fast System’s efficiency, combined with Applied Biosystems’ trusted technology, makes it an invaluable asset for any lab focused on precision and productivity.

Benefits:

• Enhanced Throughput: Fast PCR mode and multiplexing capability increase productivity, allowing for high-throughput workflows.

• Superior Detection Sensitivity: Detects low copy numbers, making it suitable for applications that require precise quantification.

• Streamlined Analysis: User-friendly software and automatic data analysis options simplify assay setup and data interpretation.

• High Reproducibility: With even thermal distribution and advanced optics, the system provides consistent results across multiple runs.

Order the Applied Biosystems 7500 Fast Real-Time PCR System Today

Upgrade your PCR capabilities with the Applied Biosystems 7500 Fast Real-Time PCR System ABI 4407205. Contact us for pricing and availability or to discuss how this system can enhance your lab’s productivity and precision.
