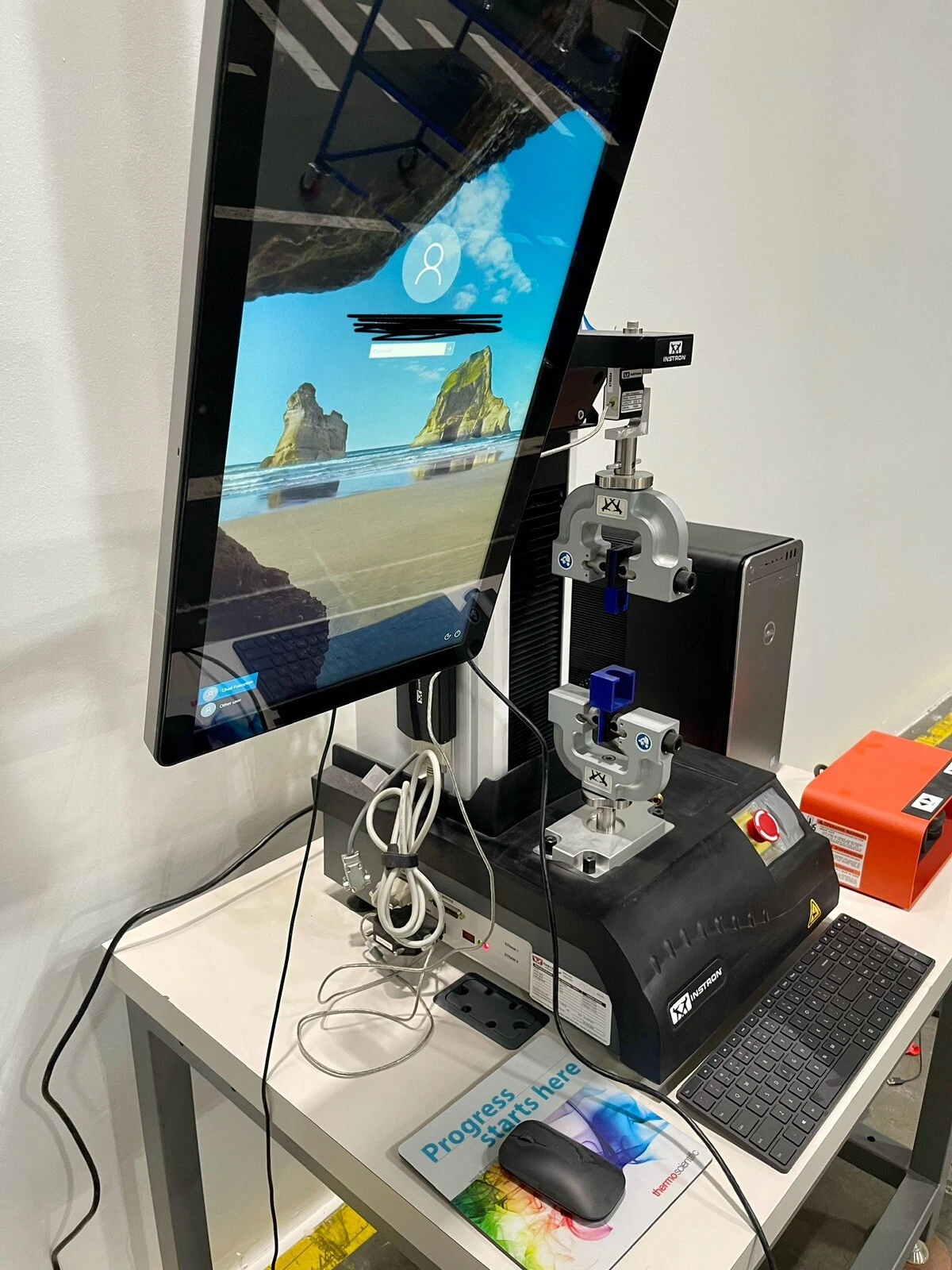

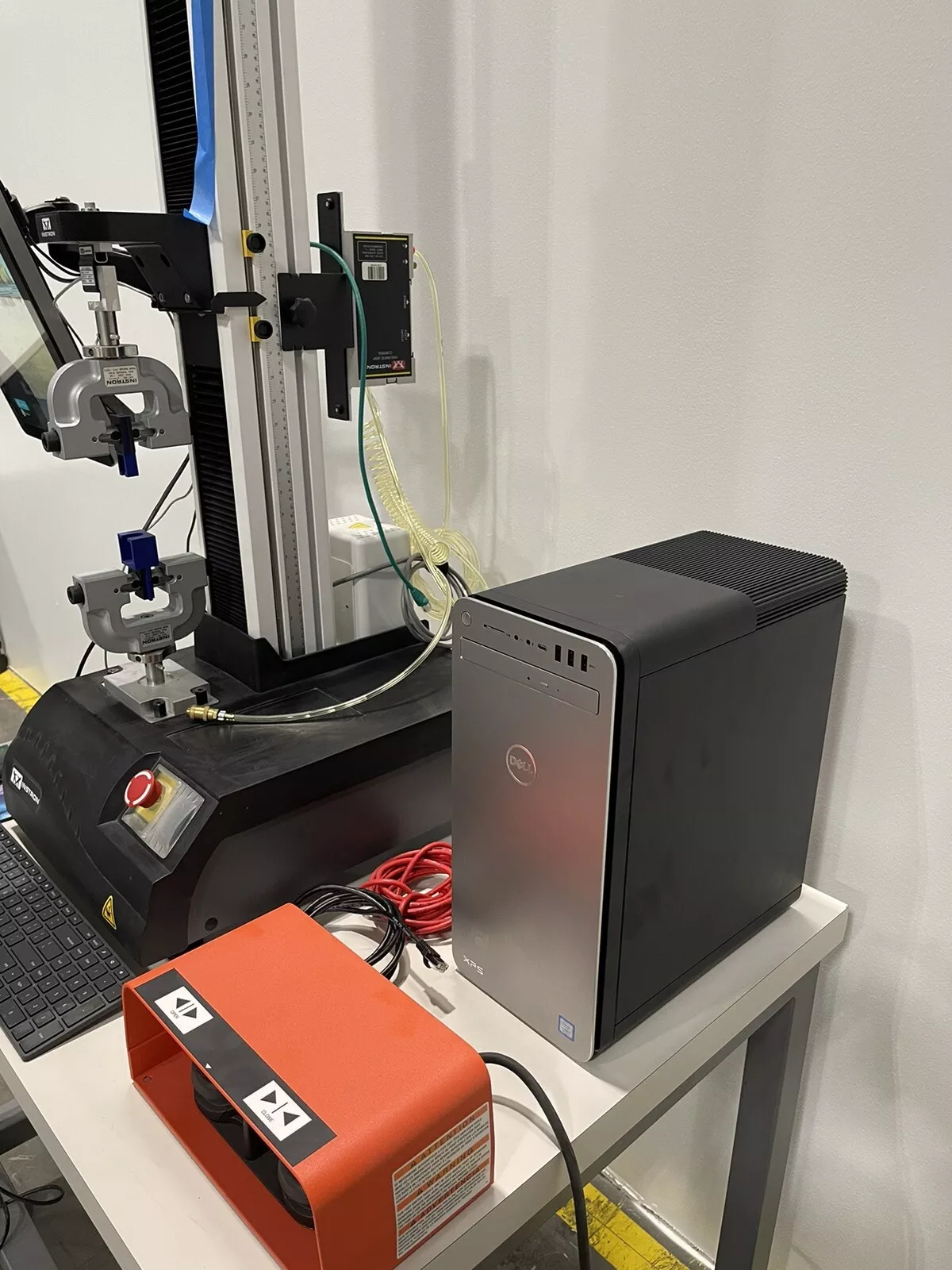

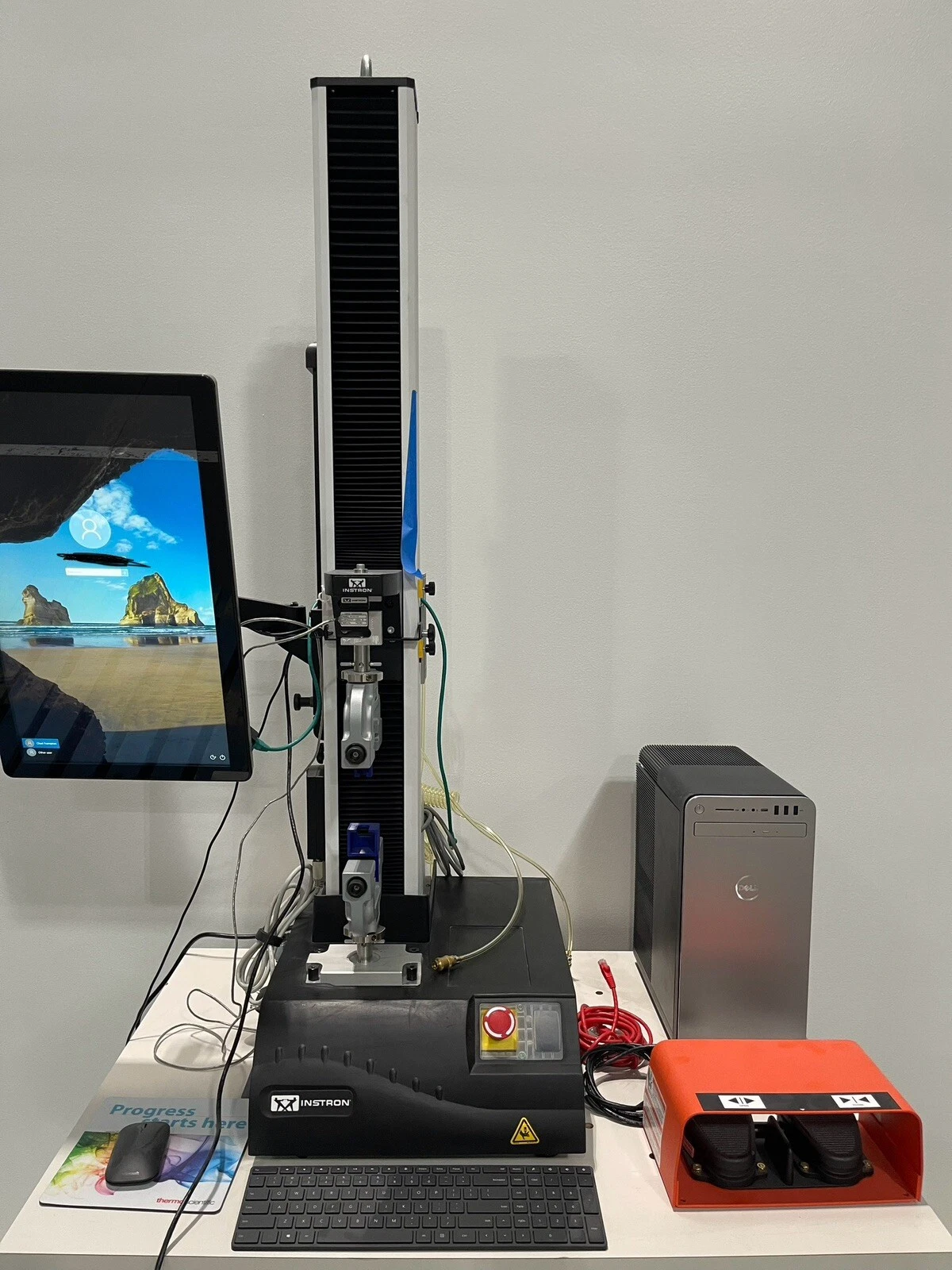

INSTRON TENSILE 2519-105
$26999.00
The Instron 2519-105 is a static load cell from the 2519 Series, designed for precision tensile testing on Instron’s single-column 3300 and 3400 frames. Here's a detailed breakdown:
🧪 Key Features
Capacity: ±1 kN (225 lbf)—ideal for low- to mid‑range static testing Instron+9Instron+9EquipX+9.
Test Types: Engineered for tension, compression, cyclic, and reverse-stress testing Artisan Technology Group+2Instron+2Instron+2.
High Resolution: Accurate measurements down to 1/500 of full capacity, reducing the need for frequent cell swaps Artisan Technology Group+3Instron+3Instron+3.
Overload Protection: Survives up to 150 % of capacity without loss of calibration, and up to 300 % without mechanical failure Cal Poly Content+2Instron+2Instron+2.
Zero Tare: Can tare out the weight of fixtures up to 40 % of capacity, maintaining full accuracy Instron+3Instron+3Instron+3.
Auto‑Recognition: Features electronic serial number and built‑in calibration for plug-and-play use Instron+1Instron+1.
Standards Compliance: Meets ASTM E4, ISO 7500‑1 Class 0.5, and JIS B7721/B7733 specifications Artisan Technology Group+9Instron+9Instron+9.
Temperature-Compensated: Maintains stability across 0–50 °C, with minimal zero and sensitivity drift per °C Instron+1Cal Poly Content+1.
📏 Mechanical Specs
Linearity & Repeatability: ±0.25 % of reading from 0.5–100 % capacity; hysteresis ±0.05 % of capacity; creep ≤0.1 % over 20 min Instron.
Fitting: Central M6×1.0RH thread with Type OO/Of clevis pin; effective length ~88 mm; width ~51 mm (3.5″ × 2″) Instron+2Instron+2Cal Poly Content+2.
Compatibility: Designed for Instron 3300/3400 single-column frames Instron+3Instron+3Instron+3.
⚙️ Operation & Application
Based on a full-bridge strain gauge attached to a stiff elastic structure. Load deforms the element, altering resistance and producing a proportional signal Instron.
Excellent for materials testing labs handling plastics, polymers, composites, metals, etc., where controlled static loading is essential.
✅ Summary Table
Spec | Value |
|---|---|
Capacity | ±1 kN (225 lbf) |
Accuracy | Linearity & repeatability ±0.25 % of reading |
Overload Survival | 150 % (safe) / 300 % (mechanical integrity) |
Tare Capability | Up to 40 % of capacity |
Temperature Range | 0–50 °C |
Frame Compatibility | 3300 / 3400 single-column |
Mechanical Interface | M6×1 thread, Type OO/Of clevis pin (6 mm / 2.5 mm axle) |
Applications | Static tensile/compression/cyclic loading |
🛠️ Ideal Usage
Static tensile testing where load readings far below max capacity are needed without swapping cells.
Compatible with automated system calibration and easy fixture changes.
Rugged design tolerates operator mishaps and sudden load spikes.
Voltage 100/120/220/240
47/63Hz
Power: 200VA
Fuse: 3A Slow Blow
