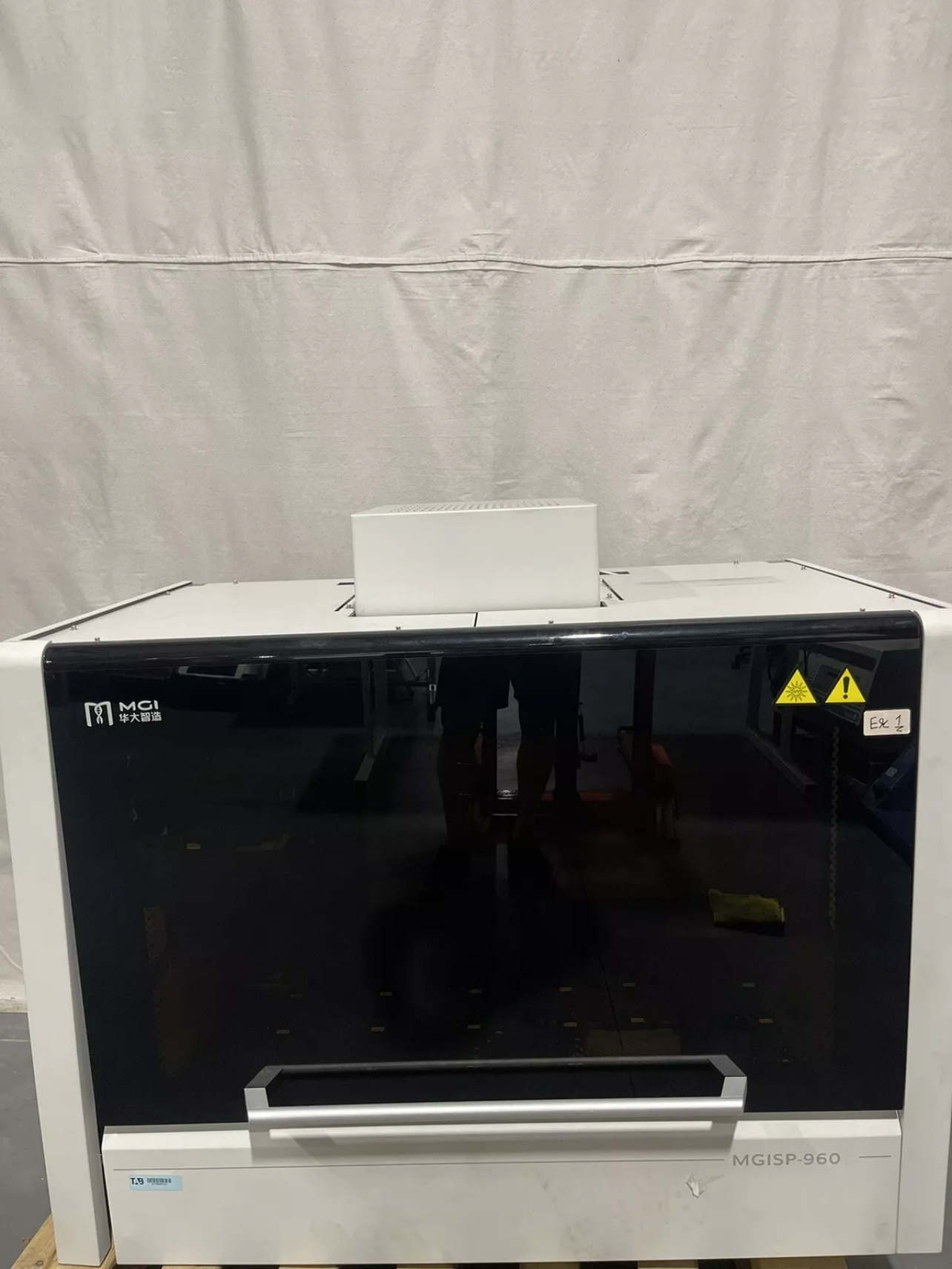

MGI MGISP-960

$4000.00

Out of stock

the MGISP-960 system is used to extract the virus nucleic acid of 96 samples within one hour and automatically prepare an RT-PCR reaction mixture after extraction.

  • Equipped with two high-efficiency 96-well magnetic racks, the system processes 96 samples simultaneously and up to 192 samples in 80 minutes, completing nucleic acid extraction and purification with magnetic beads.

  • With a rotary speed of 100-2,000 rpm, the plate vortex brings high-efficiency extraction and purification and delivers results with unparalleled accuracy. The lower limit of the system’s pipetting range is 2μL, and the fine pipetting ensures higher extraction efficiency.

  • The system’s high throughput delivers a rapid turnaround time: sample to result in 4 hours.

  • The workstation has validated many library kits, including WES/WGS/RNA.

Why you’ll love the easy-to-use MGISP-960 system and software platform:

  • Safe - Leveraging automated cleaning components (UV lamp and fan filter unit), filter tips, an enclosed safety protection door, and automated extraction, the MGISP-960 ensures that no manual intervention is necessary during the extraction process, keeping medical technologists safe.

  • Highly Efficient - With a rotary speed of 100-2,000 rpm, the MGISP-960’s plate vortex ensures high-efficiency extraction.

  • Easy to Operate - Just one medical technologist can operate three MGISP-960 systems simultaneously, greatly reducing labor input.

Throughput

Standard 96 samples/run

Pipette Type

Fixed 96 channel

Pipette Range

2 μL~200 μL

Pipette Accuracy

2 μL: <±10%; 200 μL: <±1%

Pipette CV

2 μL: <5%; 200 μL: <1%

PCR Range

4~99℃

PCR Accuracy

±0.3℃ at 55℃

PCR Uniformity

±0.2℃ at 72℃

Temperature Control Module Range

4~90℃

Temperature Control Module Accuracy

±1℃ at 55℃

Temperature Control Module Uniformity

±1℃ at 72℃

Robot Arm Positioning Accuracy

±0.1mm

Laminar Flow Hood

ISO5

UV Lamp

Radiation dose higher than 100 000μW.s/cm2

Working Environment

Temperature

19℃~25℃

Relative Humidity

20%RH~80%RH, non-condensing

Atmospheric Pressure

80kPa~106kPa

Power & Dimensions & Weight

Voltage

200V~240V, 50/60Hz

Rated Power

The standard configuration is less than 2,000 VA

Dimensions(L×W×H)

1240mm×740mm×1110mm

Weight

250 kg

The MGI MGISP-960 Automated Sample Preparation System is a high-throughput robotic workstation designed for fully automated sample preparation, offering consistent performance and scalability for genomic research, clinical diagnostics, and various sequencing workflows. With its advanced liquid handling capabilities, the MGISP-960 ensures accuracy, flexibility, and adaptability, making it an ideal choice for labs seeking efficiency and reproducibility in sample preparation for next-generation sequencing (NGS), PCR, and other molecular biology applications.

Key Features:

  • High-Throughput Capacity: Supports up to 96 samples per run, allowing labs to process large sample volumes efficiently without compromising data quality.

  • Precision Liquid Handling: Equipped with high-accuracy pipetting and multi-channel dispensing to ensure consistent sample preparation and minimize cross-contamination risk.

  • Flexible Workflow Design: The MGISP-960 supports a wide range of applications, including DNA/RNA extraction, library preparation, and PCR setup, making it adaptable to various protocols and assay requirements.

  • Integrated Sample Tracking: With barcoding capabilities, the system enables real-time sample tracking, ensuring that each sample's data integrity is maintained throughout the process.

  • Open and Programmable System: Fully customizable protocols allow labs to optimize the workflow to meet specific research needs, with compatibility across multiple reagents and consumables.

  • User-Friendly Interface: Intuitive software design offers simplified setup, protocol adjustments, and monitoring, allowing lab staff to manage workflows with ease.

  • Compact Design: Designed to maximize lab space, the MGISP-960 has a compact footprint without sacrificing throughput or functionality.

Applications:

  • Next-Generation Sequencing (NGS) Library Preparation: Automates the entire library preparation process, ensuring accurate sequencing-ready libraries with minimal hands-on time.

  • PCR Setup and Preparation: Simplifies PCR reaction setup with precise, programmable liquid handling.

  • Genomic Research and Molecular Diagnostics: Supports high-sensitivity applications such as pathogen detection, gene expression analysis, and personalized medicine.

  • DNA and RNA Extraction: Reliable extraction protocols ensure high-purity nucleic acids, ideal for downstream genomic and molecular applications.

Why Choose the MGI MGISP-960 Automated Sample Preparation System?

The MGI MGISP-960 provides an ideal blend of automation, precision, and flexibility, enabling labs to improve workflow efficiency and reduce error rates associated with manual sample handling. Designed for labs performing high-throughput genomic and molecular assays, this system offers dependable automation and consistent quality, saving valuable time and resources.

Benefits:

  • Increased Productivity: With high-throughput processing and reduced hands-on time, labs can increase sample throughput while lowering labor demands.

  • Enhanced Data Accuracy: Automated pipetting and liquid handling eliminate errors commonly associated with manual sample preparation.

  • Scalable and Adaptable: The open system design allows labs to modify protocols and integrate with different reagents, enabling a wide range of applications.

  • Streamlined Workflow Management: Barcode integration and user-friendly software support simplified sample tracking and protocol customization, reducing administrative burden.

Order the MGI MGISP-960 Automated Sample Preparation System Today

Upgrade your lab’s automation capabilities with the MGI MGISP-960 Automated Sample Preparation System. Contact us today for pricing and availability or to discuss how this system can enhance your lab’s throughput and precision.
