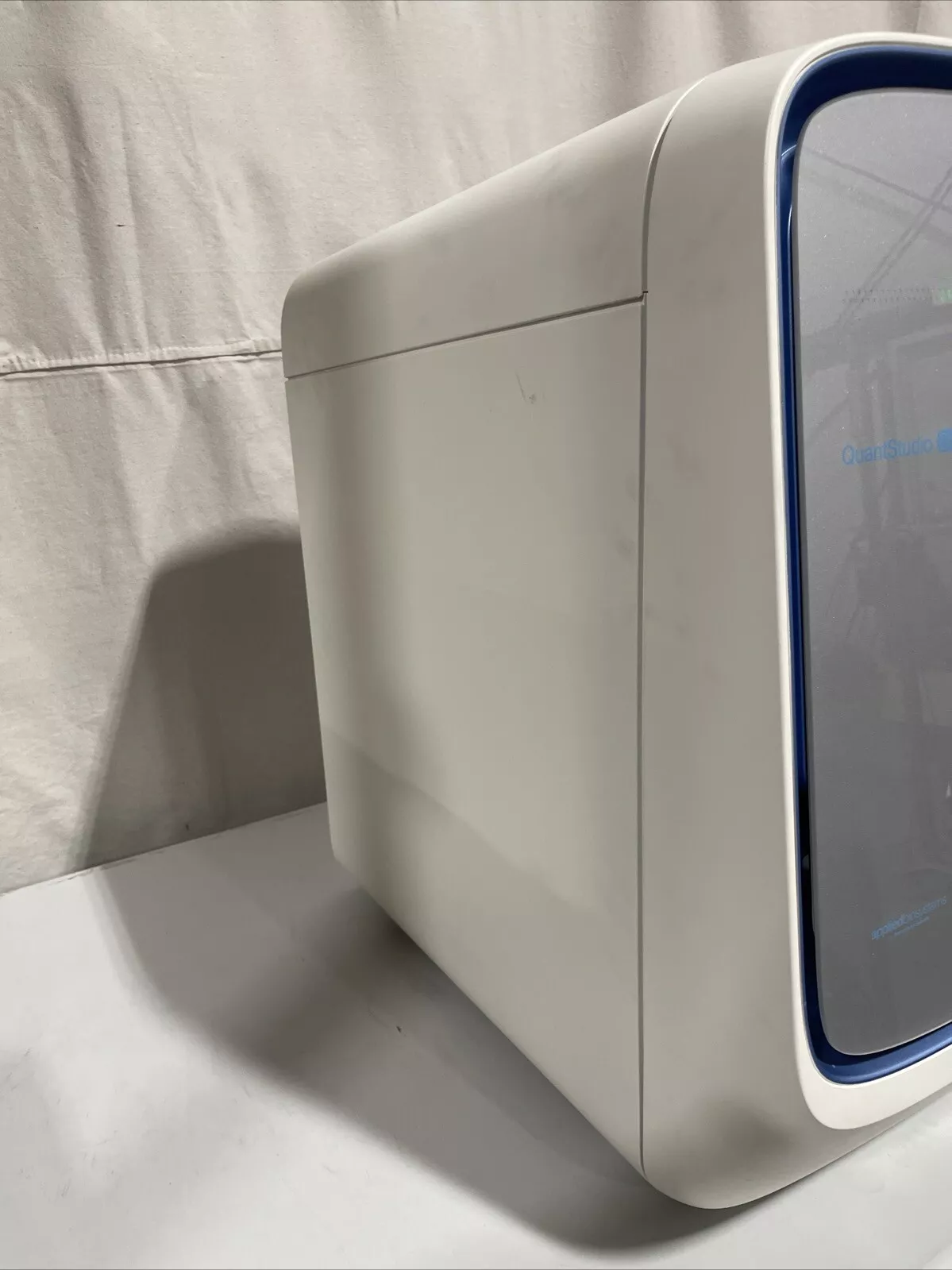

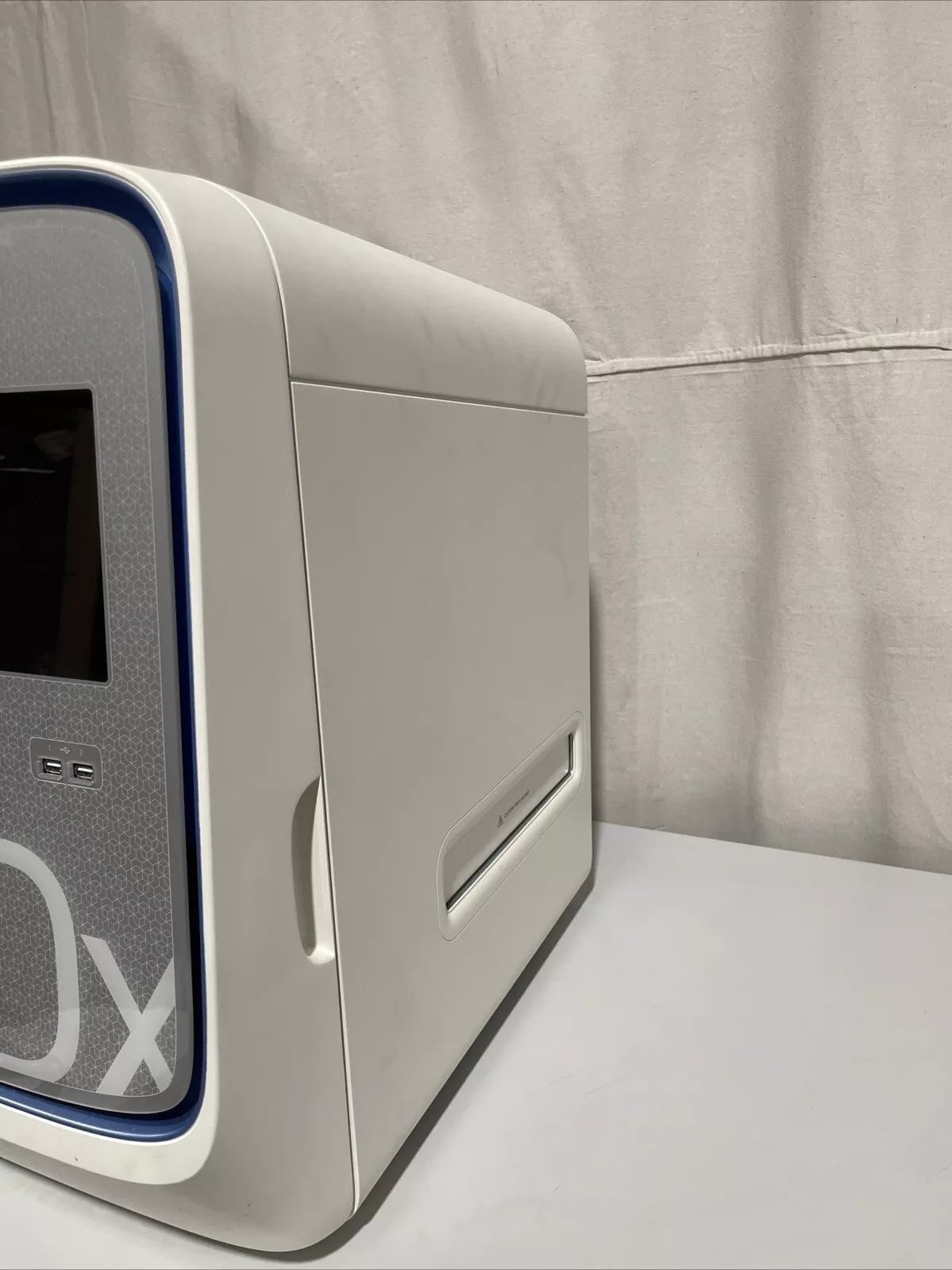

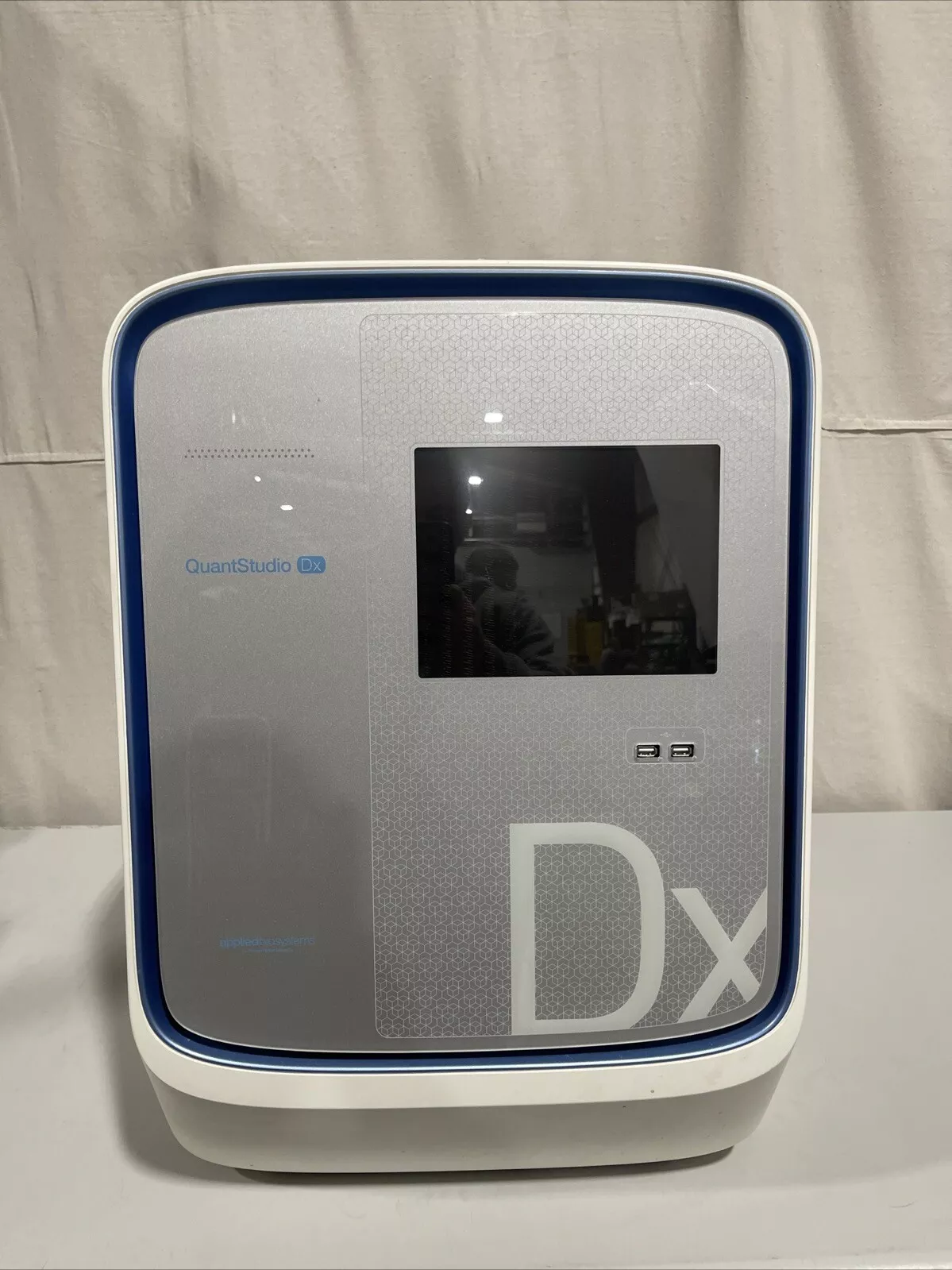

Thermo Fisher Scientific Quantstudio Real-Time PCR System DX 4470660

The Applied Biosystems QuantStudio Dx Real-Time PCR Instrument 4470660 is a clinical laboratory workhorse, delivering reliable performance for IVD applications in a 96-well 0.1-mL format diagnostic platform. It offers flexibility for test development and can be operated in either IVD mode or Test Development mode. This instrument demonstrates sensitivity down to 1 copy, with dynamic range of up to 9 logs. It supports various applications including genotyping, HRM, melt curve, gene expression, qualitative and quantitative assays. With demonstrated temperature uniformity of 0.5C, quick block change design, and security features for 21 CFR Part 11 compliance, this real-time PCR system offers robust features for rigorous clinical testing.

Key Features

• High sensitivity with demonstrated detection of 1 copy

• Robust dynamic range of up to 9 logs

• Supports various applications including genotyping, HRM, melt curve, gene expression, and qualitative and quantitative assays

• Fast block change design with no tools required for added convenience

• Security and auditing features for 21 CFR Part 11 compliance

• Temperature uniformity: 0.5C

• Demonstrated sensitivity: Down to 1 copy with IVD test performance specifications

• Dynamic range: Up to 9 logs of linear dynamic range

• Supported applications: Standard curve, comparative Ct, genotyping, HRM, melt curve, gene expression, qualitative and quantitative assays

• Resolution: Detect as little as 1.5-fold change in target quantities in singleplex reaction

• Supported blocks and reaction volumes: 96-well standard (10-100L), Fast 96-well** (10-30L), 384-well (5-20L), qPCR microfluidic cards (~1L)

• Excitation/detection wavelengths: 6 excitation (450-670nm), 6 emission (500-720nm)

• Security and auditing features: Assists with 21 CFR Part 11 compliance

Weight

Metric: 113.63 kg
Imperial: 250 lbs

Dimensions

Metric: 91.44 cm x 73.66 cm x 96.52 cm
Imperial: 36 in x 29 in x 38 in

The Thermo Fisher Scientific QuantStudio™ Real-Time PCR System DX (Model 4470660) is a state-of-the-art quantitative PCR (qPCR) platform designed to meet the demands of clinical laboratories, molecular diagnostics, and research applications. With its high sensitivity, accuracy, and user-friendly software, the QuantStudio DX enables precise nucleic acid quantification for pathogen detection, genetic testing, oncology, and other critical applications.

Key Features & Benefits

✅ Dual-Mode Flexibility: Clinical & Research Use

• The QuantStudio DX operates in both IVD (In Vitro Diagnostics) mode for clinical diagnostics and RUO (Research Use Only) mode for laboratory research.

• Ensures compliance with regulatory requirements while providing flexibility for developmental and validation studies.

✅ Advanced Optical System for High Sensitivity

• Six excitation/emission filter sets for multiplexing capabilities and enhanced fluorescence detection.

• Detects low-copy targets with high precision and minimal background noise.

• Compatible with TaqMan™ assays, SYBR™ Green, and other fluorescence-based qPCR chemistries.

✅ Fast & Efficient Real-Time PCR Workflow

• Rapid cycling capabilities shorten turnaround times while maintaining accuracy.

• 96-well format supports high-throughput sample analysis.

• Pre-programmed and customizable protocols for various qPCR applications.

✅ Intuitive Software & Connectivity

• User-friendly touchscreen interface simplifies experimental setup and monitoring.

• Cloud-based data management allows for remote access, collaboration, and secure storage.

• Automated analysis features for Ct value determination, standard curve plotting, and melting curve analysis.

✅ Regulatory Compliance & Clinical Validation

• Designed for regulated environments, including molecular diagnostic laboratories.

• Supports compliance with global regulatory standards (CE-IVD, FDA 510(k)), ensuring reliability in clinical applications.

• Secure electronic audit trail for compliance with data integrity requirements.

✅ Robust Design & Versatile Compatibility

• Compact benchtop footprint for space-saving efficiency.

• Compatible with multiple plate formats (fast and standard 96-well plates).

• Seamless integration with existing workflows, automation platforms, and LIMS systems.

Ideal Applications

✔ Clinical Diagnostics – Pathogen detection, infectious disease testing, and genetic disorders.
✔ Oncology Research – Gene expression profiling, mutation analysis, and liquid biopsy studies.
✔ Pharmacogenomics – Personalized medicine applications and drug response studies.
✔ Molecular Biology Research – Gene quantification, SNP genotyping, and miRNA analysis.
✔ Food Safety & Environmental Testing – Detection of contaminants, allergens, and microbial pathogens.

Why Choose the Thermo Fisher QuantStudio DX Real-Time PCR System?

✔ High sensitivity and accuracy for critical qPCR applications
✔ Dual-mode flexibility for clinical diagnostics and research use
✔ Fast, high-throughput performance for reliable results
✔ Advanced connectivity with cloud-based data management
✔ Compliant with regulatory standards for molecular diagnostics

The Thermo Fisher QuantStudio DX Real-Time PCR System is an essential tool for molecular laboratories that require precise, reliable, and high-performance qPCR analysis. Order today to elevate your clinical and research capabilities!
